CleanRoom

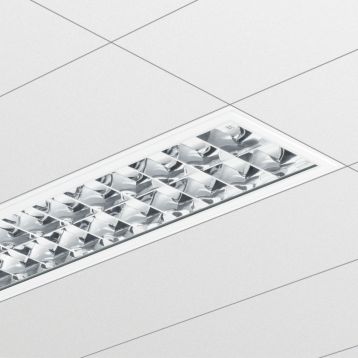

CR200B - 2 pcs - TL5 - 54 W - HF Performer - Tempered glass
Download product leaflet
1.35 MB
Product Information
General information
| Product family code | CR200B [CR200B] |
| Number of lamps | 2 [2 pcs] |
| Lamp family code | TL5 [TL5] |
| Lamp power | 54 W [54 W] |
| Gear | HFP [HF Performer] |
| Optical cover | GT [Tempered glass] |
| Emergency lighting | No |
| Safety class | CLI [Safety class I] |
| IP code | IP65 [Dust penetration-protected, jet-proof] |
| IK code | IK06 [1 J] |
| Ambient temperature | NT [Normal temperature version] |
| Glow-wire test | 650/5 [Temperature 650 °C, duration 5 s] |
| Flammability mark | F [For mounting on normally flammable surfaces] |
| European Community mark | CE [CE mark] |
Product Data
| Order code | 910503681018 |
| Full product code | 910503681018 |
| Full product name | CR200B 2xTL5-54W HFP GTL IP65 |
| Order product name | CR200B 2xTL5-54W HFP GTL IP65 |
| Pieces per pack | 0 |
| Packs per outerbox | 1 |
| Bar code on outerbox - EAN3 | 8717943895755 |
| Logistic code(s) - 12NC | 910503681018 |
| Net weight per piece | 9.250 kg |
Leaflets
|
Leaflet | pdf 1.35 MB |
|
|
Declaration of Conformity | pdf 83.15 KB |
|
|
Installation Instructions | pdf 1.25 MB |
Software Plugins
|
CR200B 2xTL5-54W HFP GT (IES) | ies 1.95 KB |
|
|
CR200B 2xTL5-54W HFP GT (Dialux) | uld 11.5 KB |
|
|
CR200B 2xTL5-54W HFP GT (Eulumdat) | ldt 1.64 KB |
Other downloads
|
Product Images | zip |
|
|
Product Diagrams | zip |
