eW Reach Powercore

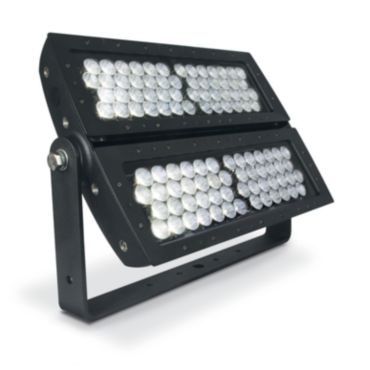

eW Reach Powercore – next-generation white LED floodlight for signature façades and structures
  • Unparalleled light output
  • Wide choice of color temperatures
  • Unique split design to support diffuser combinations

Add to ProjectPlanner

The eW Reach Powercore family

eW Reach Powercore is the first white-light/solid-color exterior architectural LED floodlight powerful enough to brilliantly and dynamically illuminate large architectural façades. eW Reach Powercore combines all the benefits of LED lighting in an elegant fixture specifically designed for large-scale installations, such as commercial skyscrapers, casinos, large retail exteriors, bridges, piers, public monuments, and themed attractions. With extremely high lumen output and unprecedented light projection, this powerful fixture represents the next generation in exterior illumination.Integrated Powercore technology ensures rapid, efficient and accurate control of power output to the fixture directly from line voltage, eliminating the need for external power supplies. Use of standard wiring dramatically simplifies installation and helps lower total system cost.

Features
  • Light output of over 11,000 lumens and light projection over 240 meters
  • Available in eight color temperatures, ranging from a warm 2700 K to a cool 6500 K, and five solid colors – royal blue, blue, green, amber and red
  • Spread lenses of 8°, 13°, 23°, 40°, 63°and asymmetric 5° x 17°
  • Simple positioning and fixture rotation through full 360°
  • Integrated Powercore technology
Applications
  • Large-scale signature facades and structures
Share your opinion
What are your thoughts on this product?
Visit the LightCommunity
Lighting in the news
Read about the latest news
Visit the newscenter
Product Information
Type DCP771
Light source Integral LED-module
Power (maximum at full output, steady state) 250 W
Beam angle 8, 13, 23, 40 or 63º (spread lenses)
5 x 17º (asymmetric spread lens)
Luminous flux 8,612 lm (2700 K), 11,392 lm (4000 K) (both with no spread lens, full unit)
Luminaire efficacy 34.4 lm/W (2700 K), 45.6 lm/W (4000 K) (both with no spread lens, full unit)
Correlated Color Temperature 2700 or 4000 K
Color Rendering Index 83.1 (2700 K), 80 (4000 K)
Maintenance of lumen output - L70 70,000 hours at 25ºC
37,000 hours at 50ºC
Maintenance of lumen output - L50 90,000 hours at 25ºC
68,000 hours at 50ºC
Operating temperature range -20 to +50ºC
Driver Integrated
Mains voltage 100 - 240 V AC / 50-60 Hz
Dimming Digital via Data enabler Pro
Material Housing: die-cast aluminum
Lens: tempered glass Connection 1.8 m unified power cable
Installation Surface mounted
Accessories Beam spreader lens with bezel
eW Reach Powercore
16
products found
Order Code 910503702010
Order Code 910503702013
Order Code 910503701423
Order Code 910503702554
Order Code 910503702016
Order Code 910503702012
Order Code 910503700767
Order Code 910503700768
Order Code 910503702017
Order Code 910503702014
Order Code 910503702018
Order Code 910503700624
Order Code 910503700623
Order Code 910503702011
Order Code 910503702015
Order Code 910503700769
