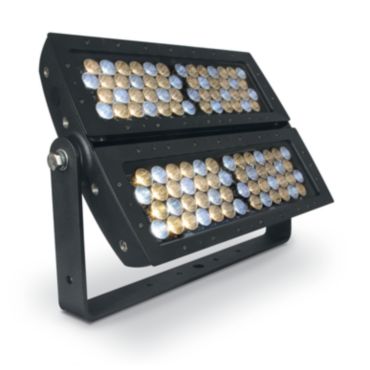

iW Reach Powercore – intelligent white LED floodlight for signature facades and structures
  • Unparalleled light output
  • Wide choice of color temperatures
  • Unique split design to support diffuser combinations

Add to ProjectPlanner

The iW Reach Powercore family

iW Reach Powercore is the first LED fixture powerful enough to brilliantly illuminate large architectural façades with washes of white light in color temperatures ranging from warm to cool. iW Reach Powercore combines all the benefits of LED lighting in an elegant fixture specifically designed for large-scale installations, such as commercial skyscrapers, casinos, large retail exteriors, bridges, piers, public monuments, and themed attractions. With extremely high lumen output and unprecedented light projection, this powerful fixture represents the next generation in exterior illumination.Integrated Powercore technology ensures rapid, efficient and accurate control of power output to the fixture directly from line voltage, eliminating the need for external power supplies. Use of standard wiring dramatically simplifies installation and helps lower total system cost.

Features
  • Light output of over 10,000 lumens and light projection over 240 meters
  • White light ranging from cool (6500 K) to warm (2700 K)
  • Spread lenses of 8°, 13°, 23°, 40°, 63° and asymmetric 5° x 17°
  • Simple positioning and fixture rotation through full 360°
  • Integrated Powercore technology and Philips Data Enabler Pro
Applications
  • Large-scale signature facades and structures
Share your opinion
What are your thoughts on this product?
Lighting in the news
Read about the latest news
Product Information
Type DCP772
Light source Integral LED-module
Power (maximum at full output, steady state) 250 W
Beam angle 8, 13, 23, 40 or 63º (spread lenses)
5 x 17º (asymmetric spread lens)
Luminous flux 10,950 lm (without spread lens, full unit)
Luminaire efficacy 43.8 lm/W (without spread lens, full unit)
Correlated Color Temperature 2700 - 6500 K
Color Rendering Index 68.5
Maintenance of lumen output - L70 70,000 hours at 25ºC
37,000 hours at 50ºC
Maintenance of lumen output - L50 90,000 hours at 25ºC
68,000 hours at 50ºC
Operating temperature range -20 to +50ºC
Driver Integrated
Data / Powersupply Data enabler Pro; integrated data and power for intelligent LED lighting fixtures using Powercore
Mains voltage 100 - 240 V AC / 50-60 Hz
Dimming Digital via Data Enabler Pro
Material Housing: die-cast aluminum
Lens: tempered glass
Connection 1.8 m unified power cable
Installation Surface mounted
Accessories Spread lens with bezel
iW Reach Powercore
1
products found
Order Code 910503700625
